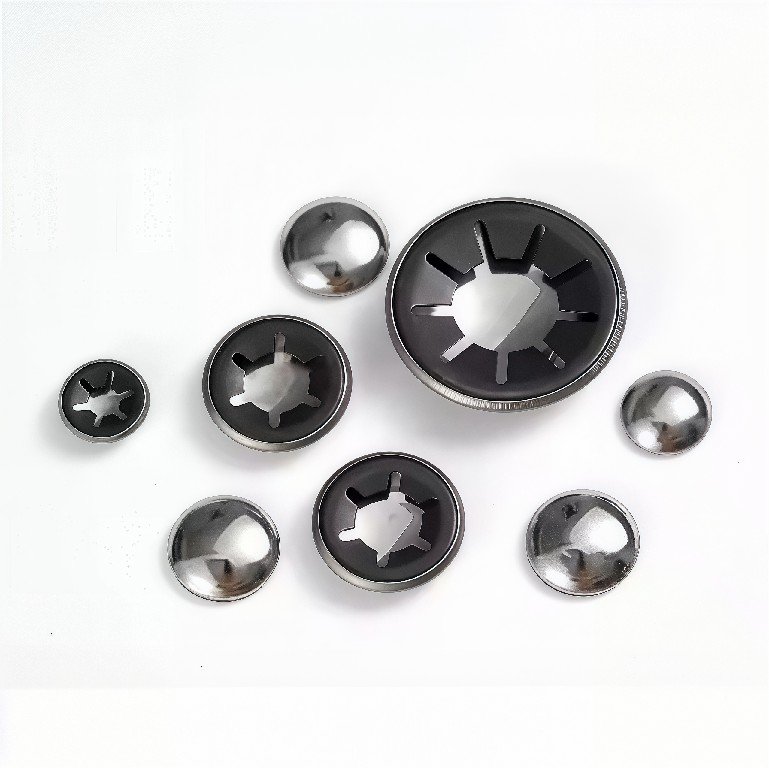

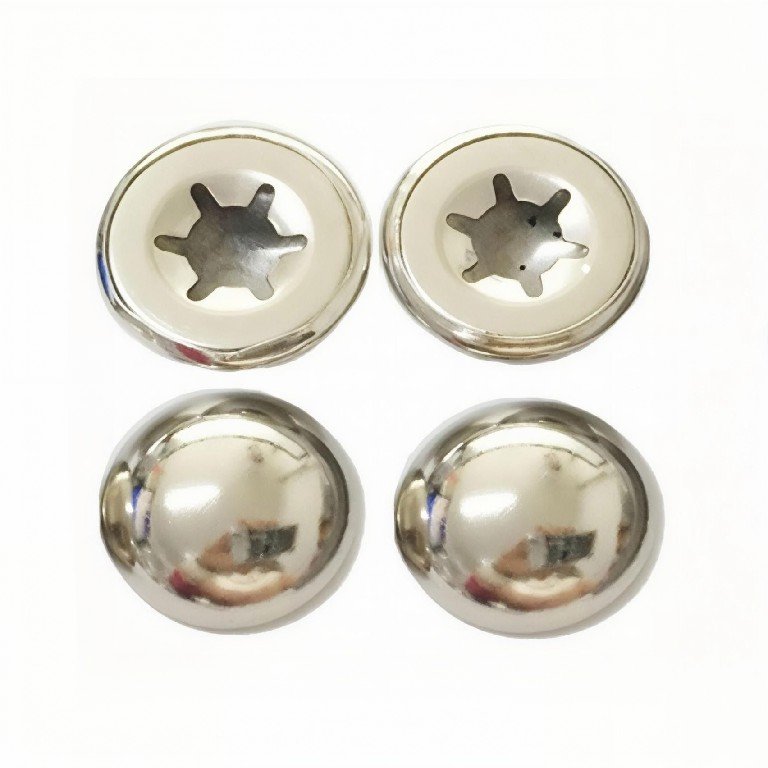

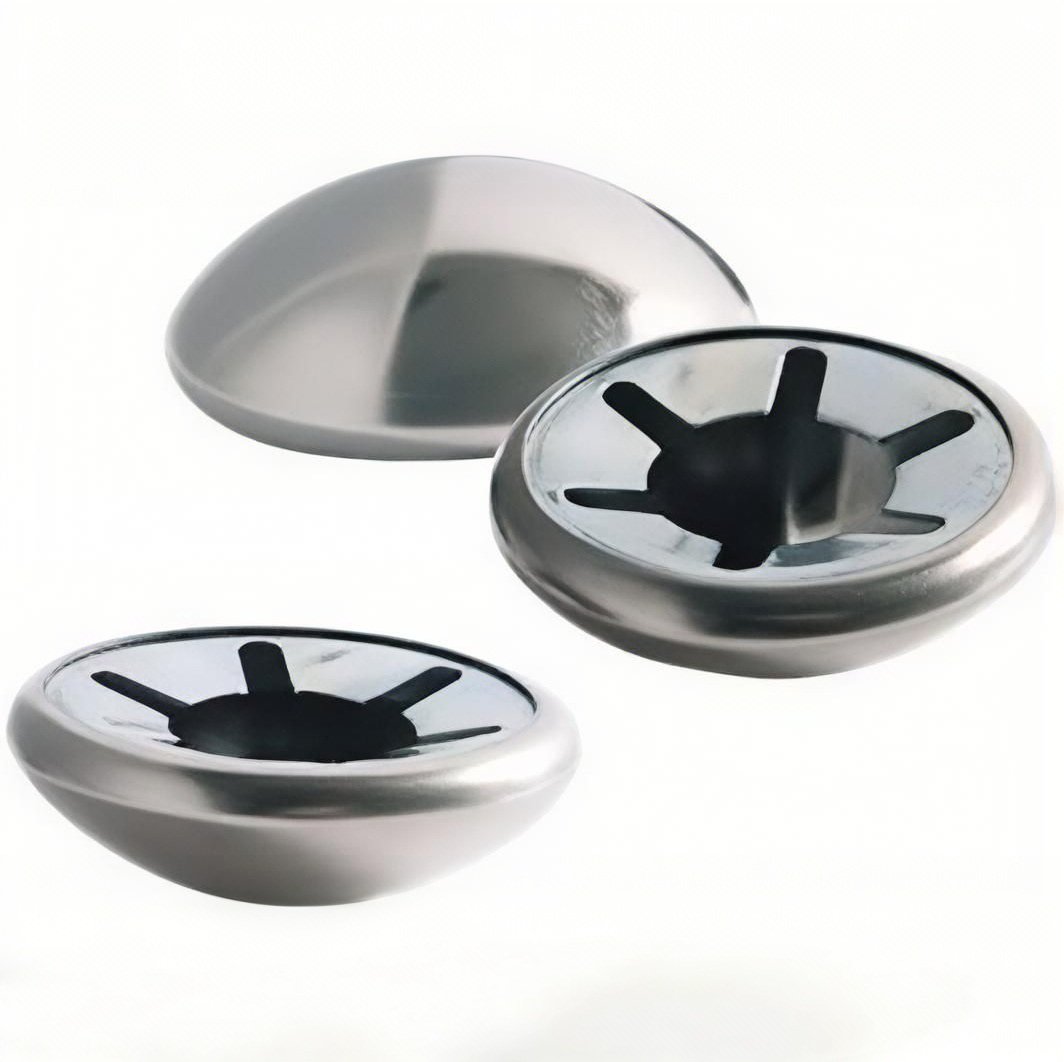

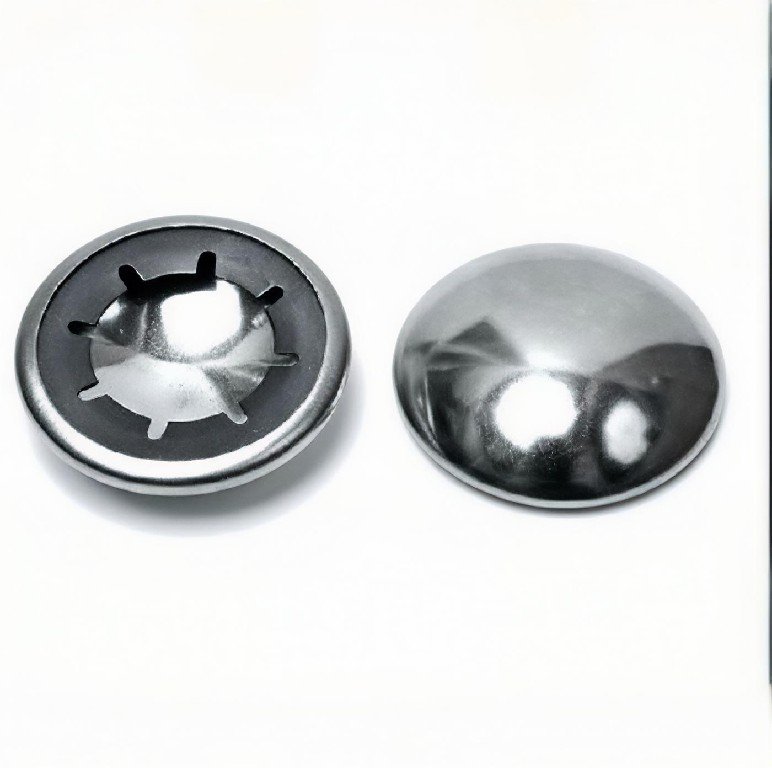

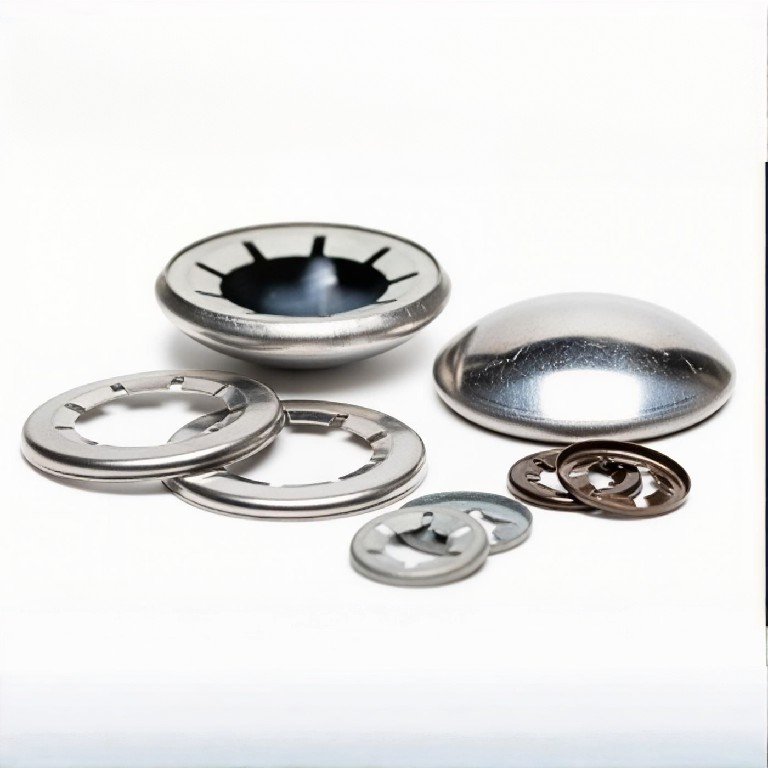

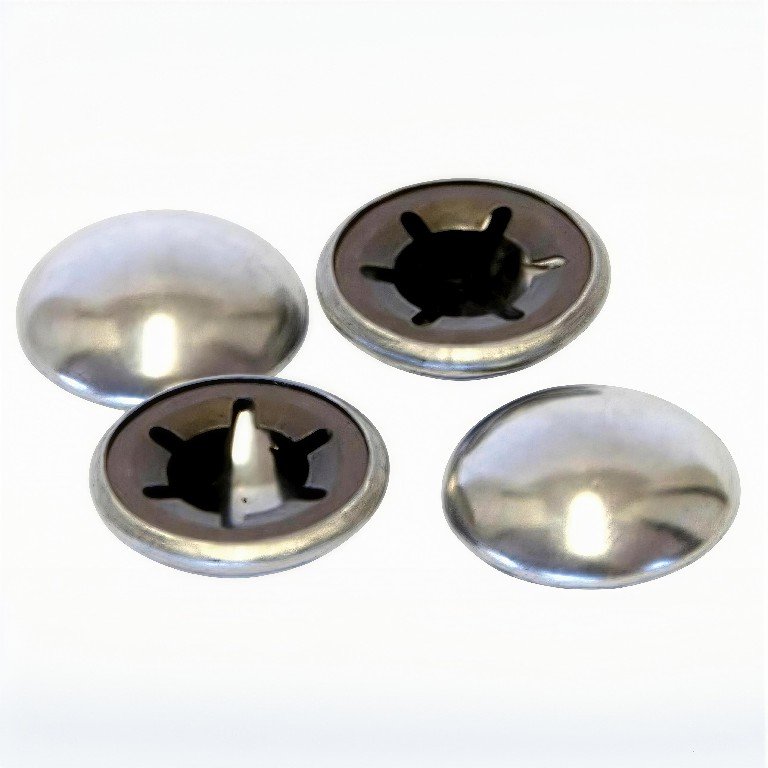

Cap Nut with Star Lock Washer

Cap Nut with Star Lock Washer is an integrated fastener assembly combining a capnut and a star lock washer, The cap nut provides both fastening and protectivefunctions, while the star lock washer ensures a strong anti-loosening effect bygripping into the mating surface. This design offers secure locking against vibrationand shock, easy installation, and added safety, making it ideal for applicationsrequiring both fastening and protection.

Size Range: Standard range M3-M12, with customization availableStandards: Manufactured according to DlN, lFl, or customer-specificclrawings

Available Materials: Carbon steel (65Mn), Stainless steel (SS304/SS316)

Options: Black oxide, Dacromet, Zinc plating (blue/white, yellow), Nickelplating, etc.

How to Use & Applications

How to Use:
Screw the cap nut with the integrated star lock washer directly onto the bolt orstud. The washer’s serrations bite into the mating surface, preventing looseningfrom vibration, No need for a separate washer, simplifying installation.
Applications:
Widely used in automotive industry, household appliances, furniture, toys.machinery, and electronics, particularly where anti-loosening, protective, anddecorative effects are required.
