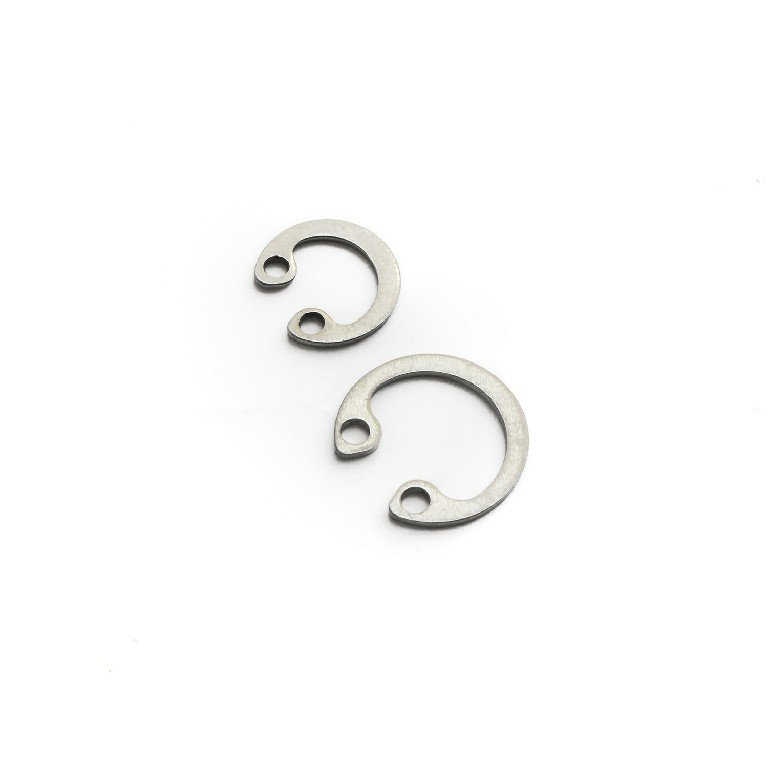

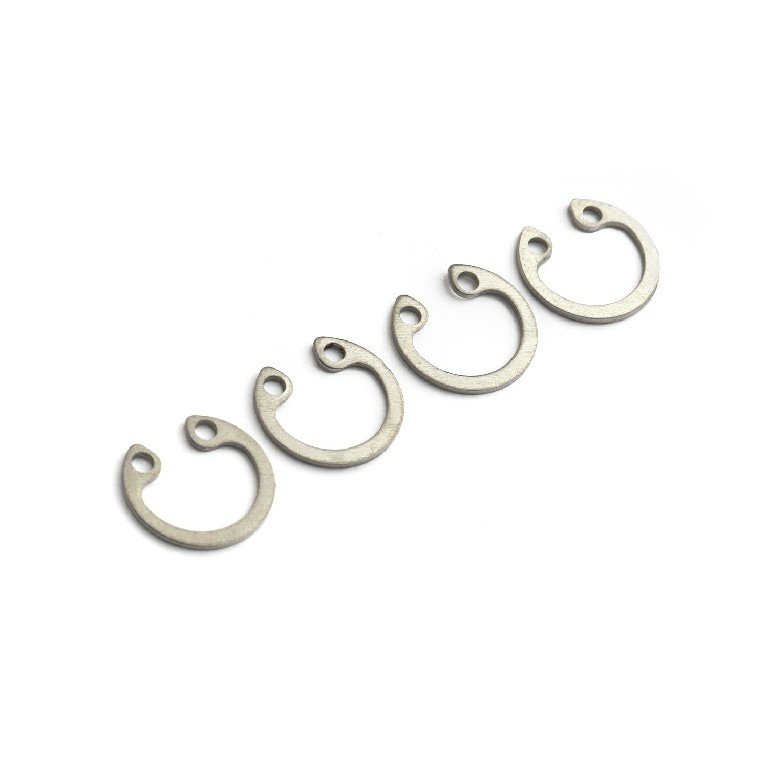

DIN472 Internal Retaining Rings

DIN 472 internal retaining rings are open-ended circlips designed to be mounted in a groove inside a bore. They prevent axial movement or loosening of components within the housing. With a compact structure and high reliability, they are widely used in mechanical and industrial applications.

Size Range: M8-M300(standard range)
Standards: DIN472

Available Materials: Carbon steel (65Mn), Stainless steel (SS304/SS316)

Options: Black oxide, Dacromet, Zinc plating (blue/white, yellow), Nickelplating, etc.

How to Use & Applications

How to Use:
Place the circlip into the bore groove, where its tension secures it in place
Install and remove with circlip pliers
Provides reusable and reliable axial retention

Applications:
Automotive industry (engines, transmissions, clutch assemblies)
Industrial machinery
Aerospace
Motors, pumps, and electrical devices
