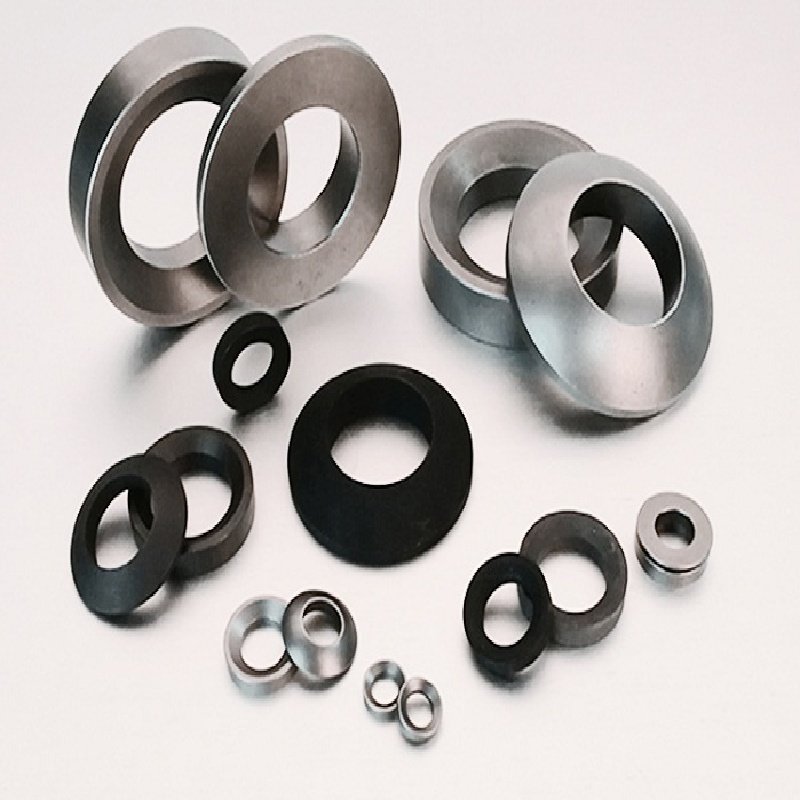

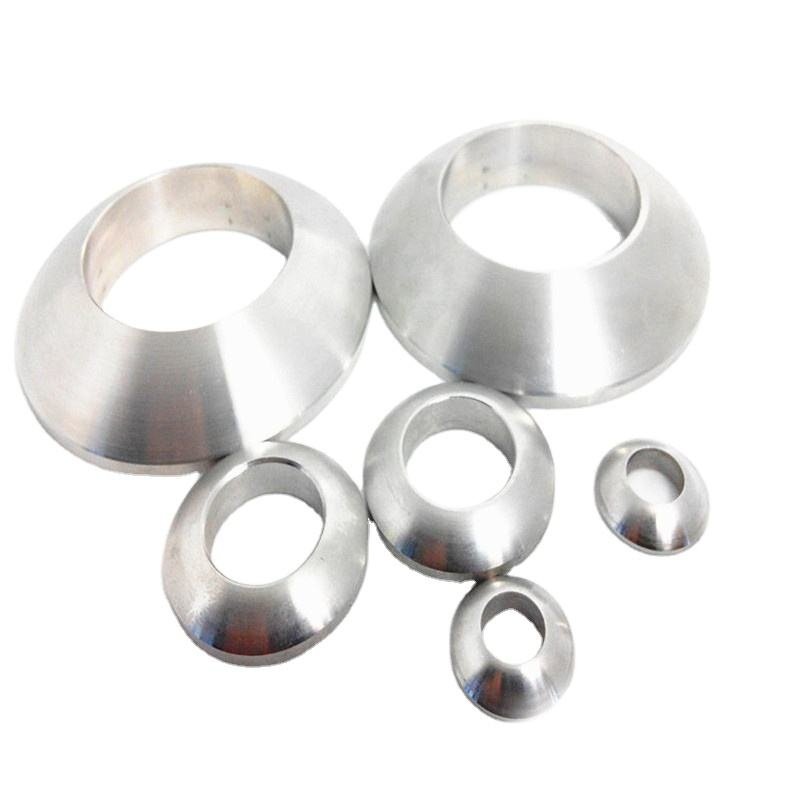

DIN6319 C/D Spherical Washers

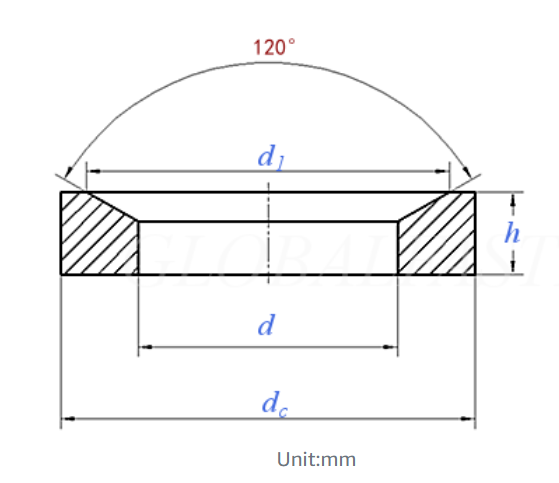

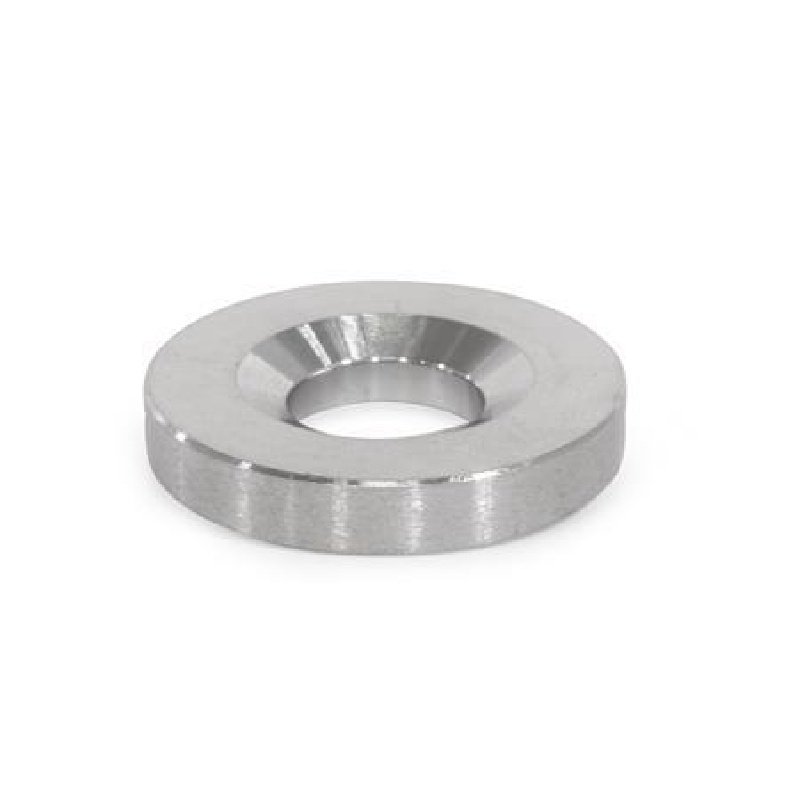

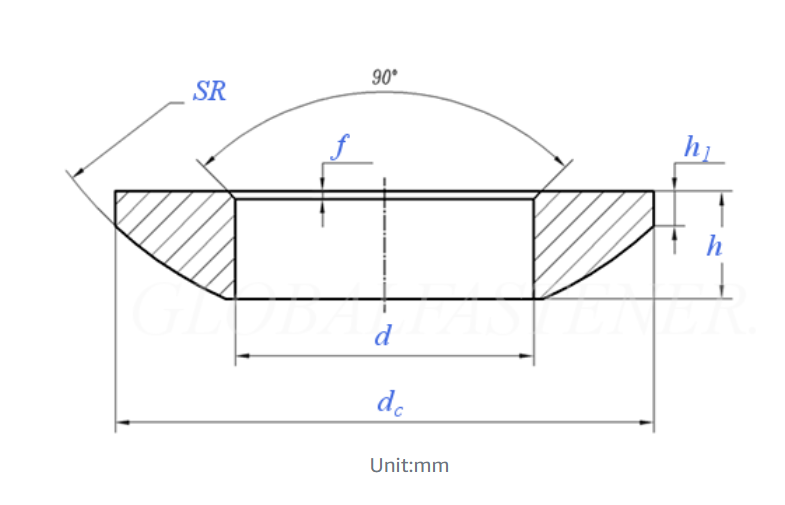

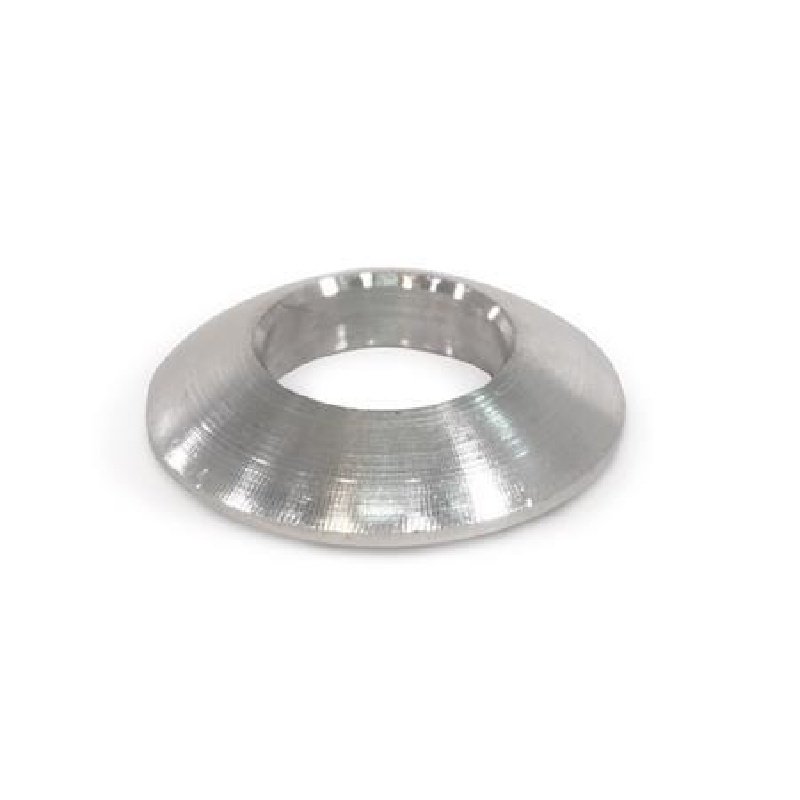

DIN 6319 spherical washers consist of a mating pair: the concave washer (Type C) and the convex washer (Type D). They are designed to compensate for angular misalignments between the bolt axis and the bearing surface, ensuring uniform load distribution and preventing bolt bending or stress concentration. They are especially suitable for applications requiring precise fastening and load compensation.

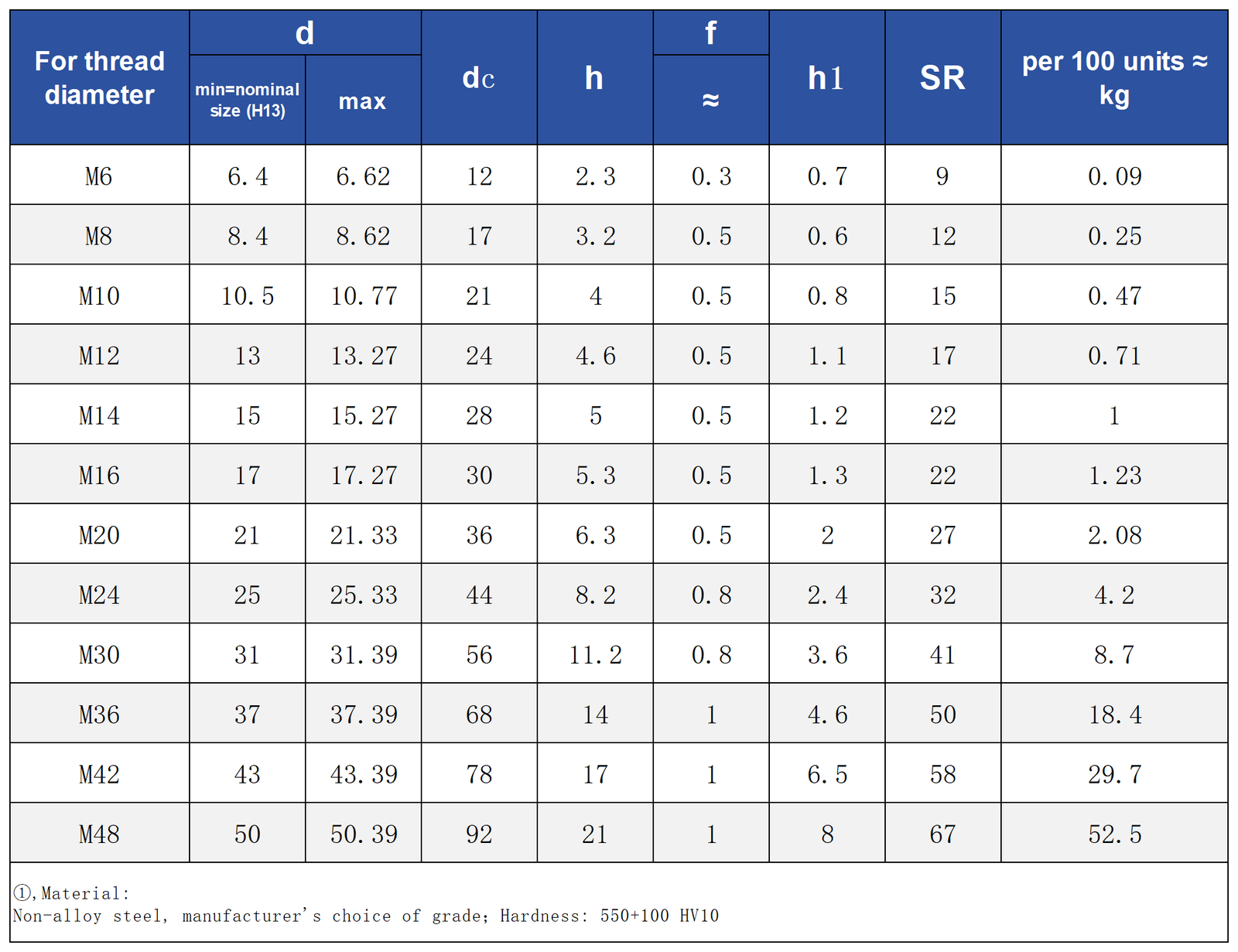

Size Range:M 6 -M 48 (standard range)
Standards: DIN6319 C/D

Available Materials: Carbon steel (65Mn), Stainless steel (SS304/SS316)

Options: Black oxide, Dacromet, Zinc plating (blue/white, yellow), Nickelplating, etc.

How to Use & Applications

How to Use:
Always used in pairs: Concave washer (C) with Convex washer (D)
Place the convex washer (D) under the bolt head or nut, with the concave washer (C) underneath
The spherical contact compensates misalignment, ensuring secure and uniform load transfer

Applications:
Automotive industry
Machine tools and molds
Steel structures
Heavy machinery and equipment
Wind power and power generation
