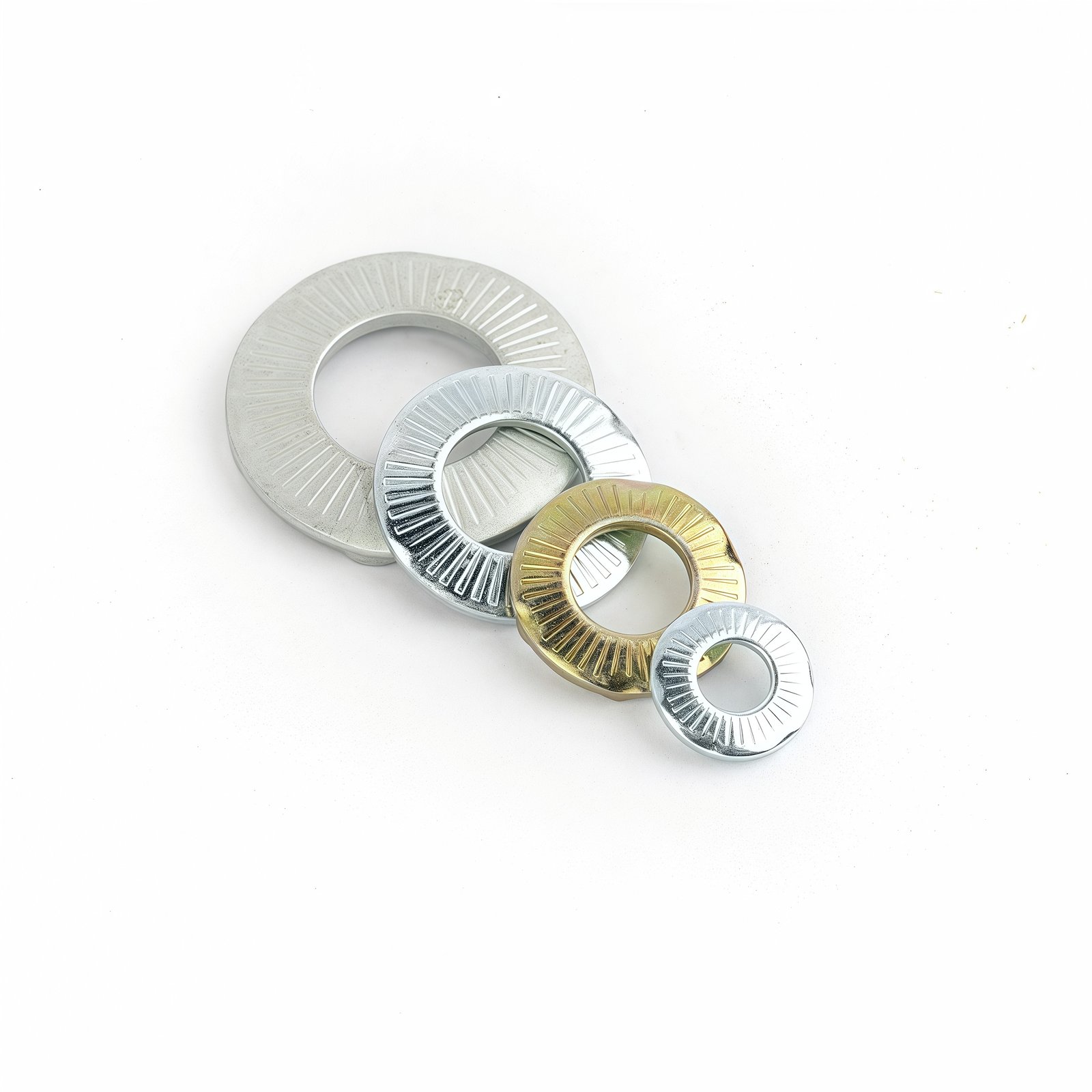

Features: DlN6795 earthing washers are serrated washers designed for electricalconnections,ensuring reliable conductivity and grounding.Advantages: The serrations penetrate the metal surface, remove oxide layers,reduce contact resistance, and maintain stable electrical conductivity.

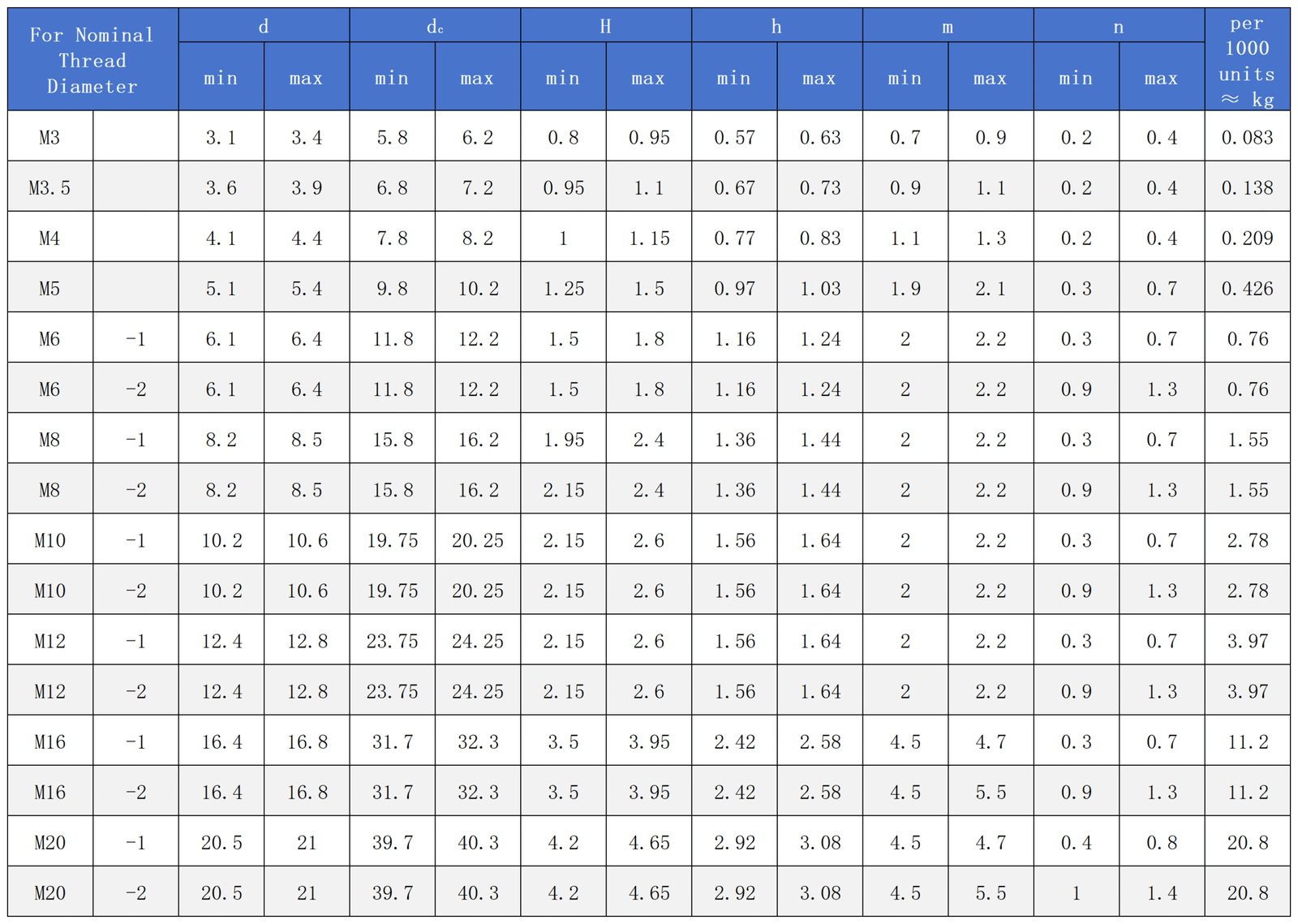

Size Range: M3-M20

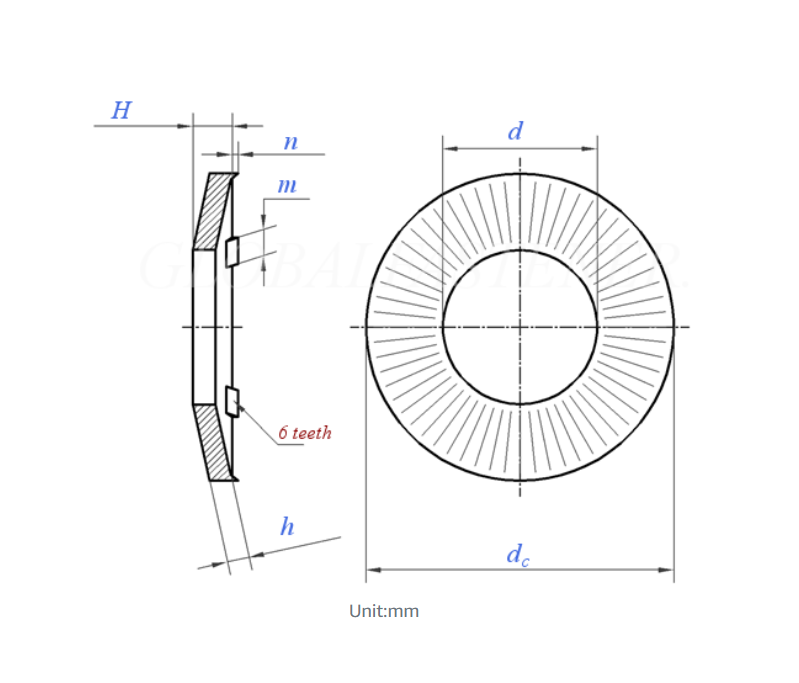

Standards: DlN6795

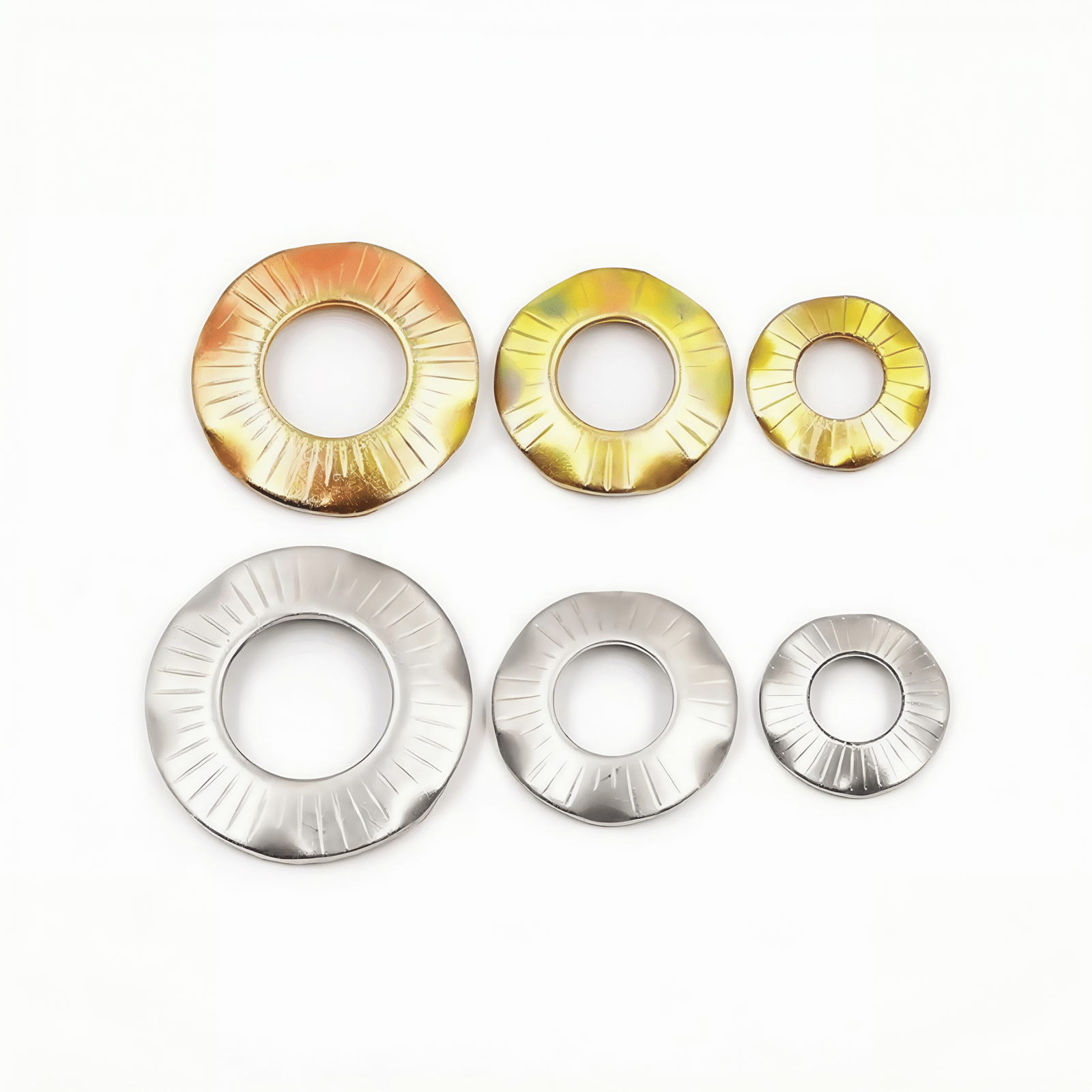

Available Materials: Carbon steel (65Mn), Stainless steel (SS304/SS316)
Options: Black oxide, Dacromet, Zinc plating (blue/white, yellow), Nickelplating, etc.
How to Use: Place the washer under the nut or screw head during installation. Theserrations bite into the metal surface to ensure effective electrical contact.Applications: Electrical equipment, switchgear, automotive electronics, wind power.railway systems, and telecommunication devices requiring reliable grounding.
Established in 2003, Ruiqin Standard Parts integrates R&D, Production and Export in the Industry of Washers & Fasteners, including Self-locking Washers, Belleville Washers, Serrated Washers and Retaining Rings for Automotive and Machinery Applications.
