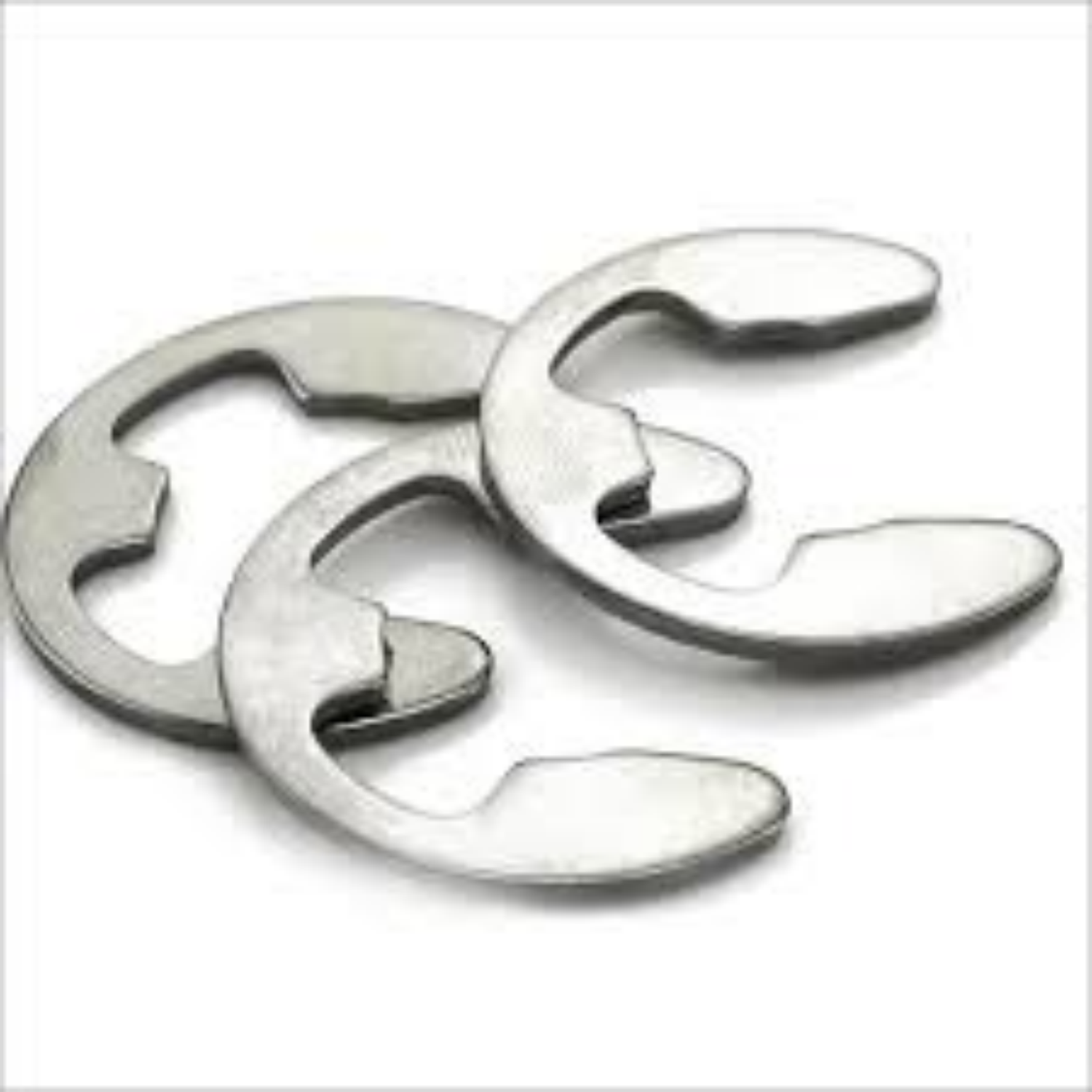

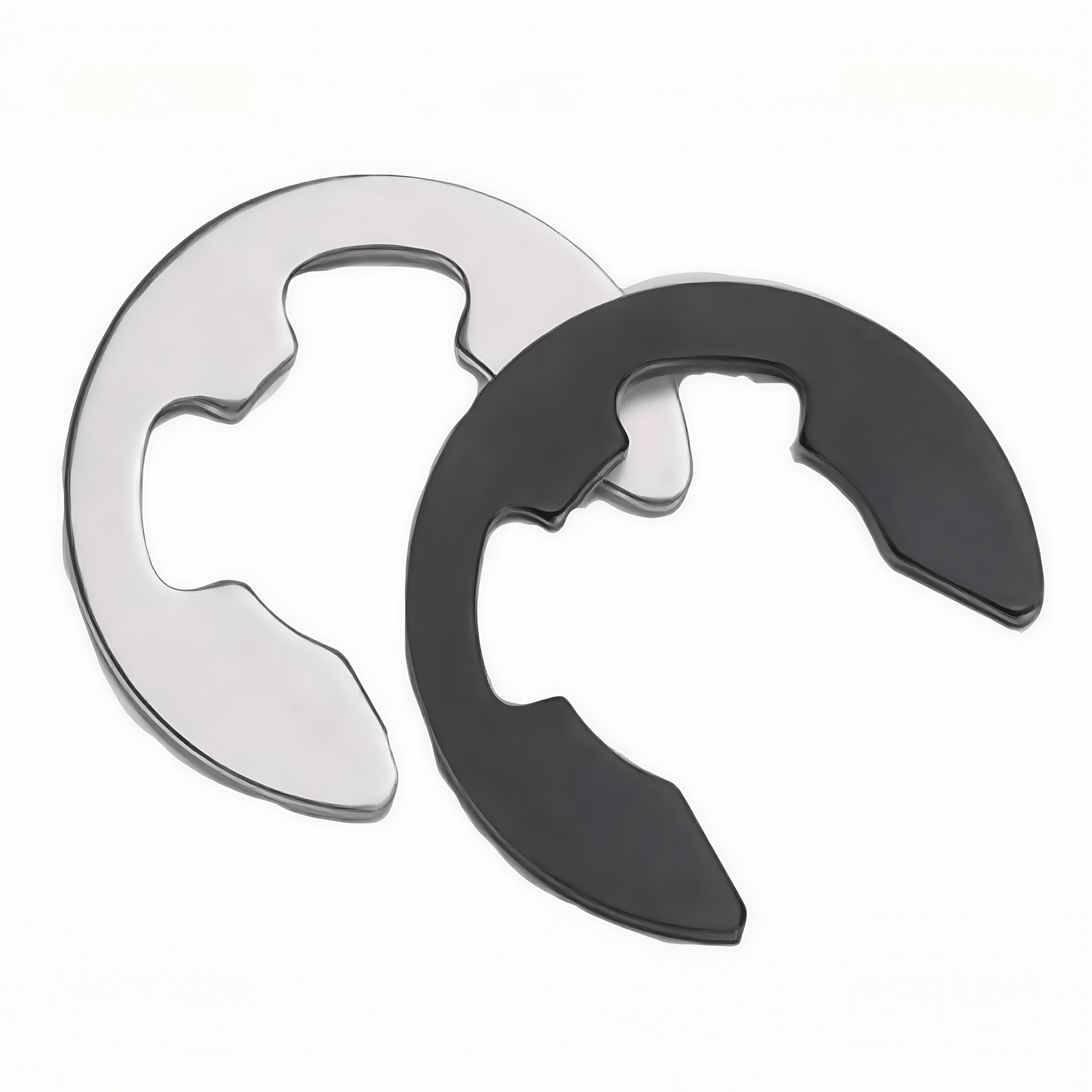

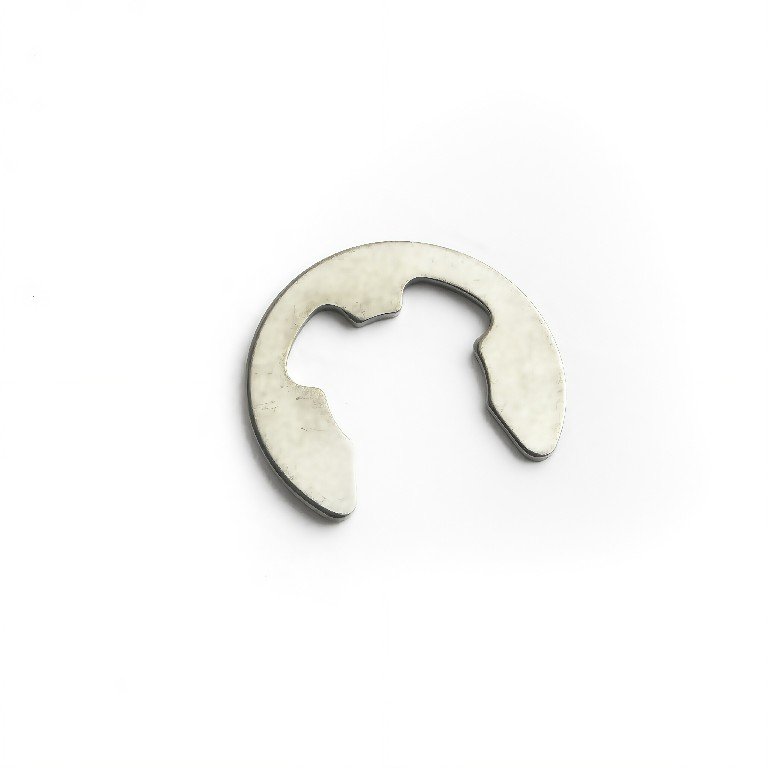

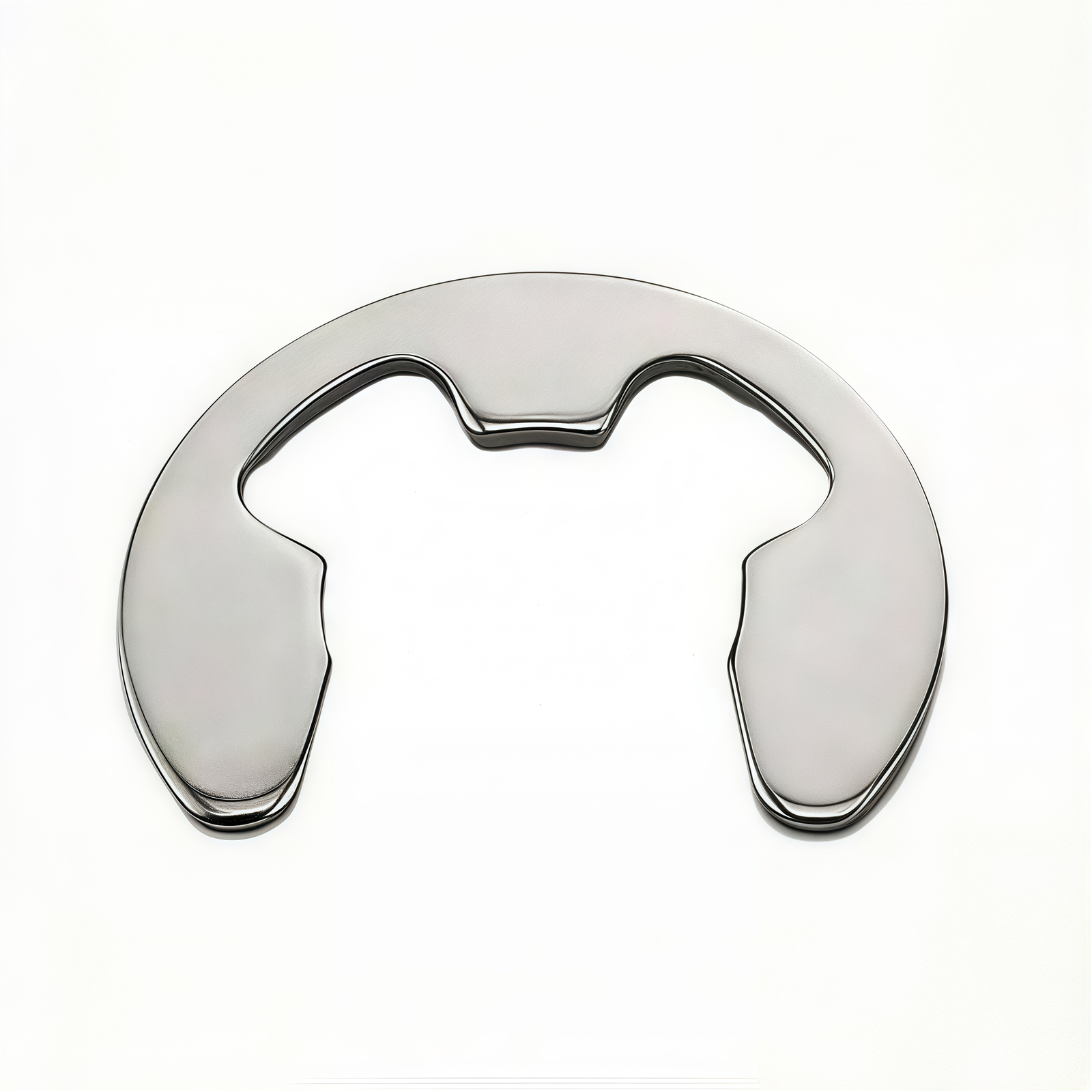

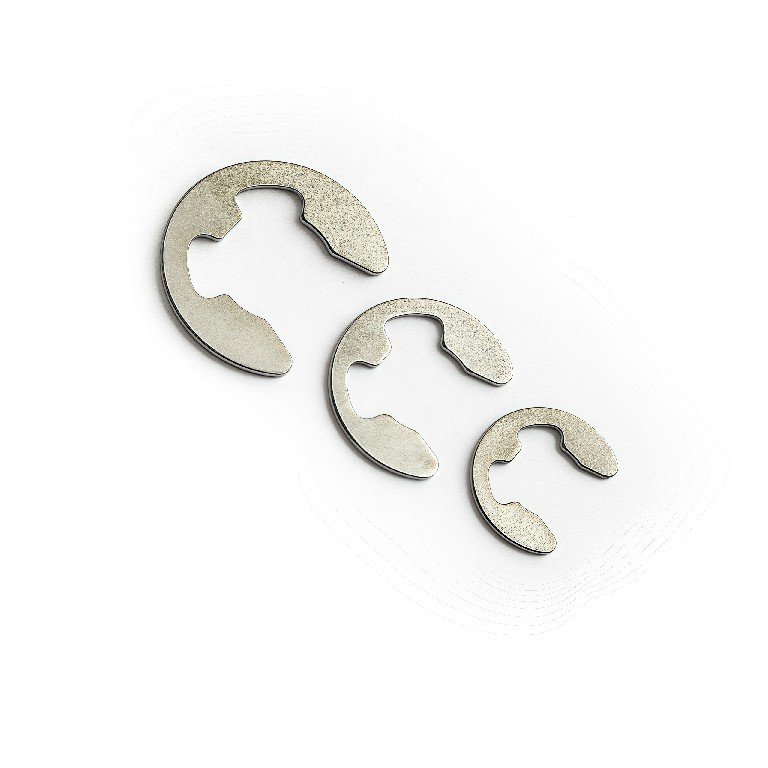

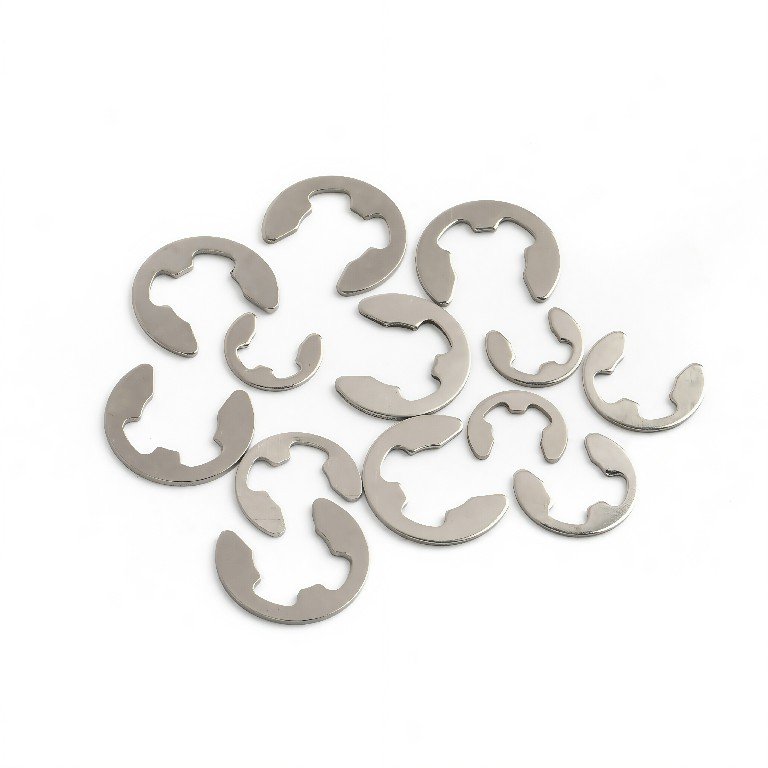

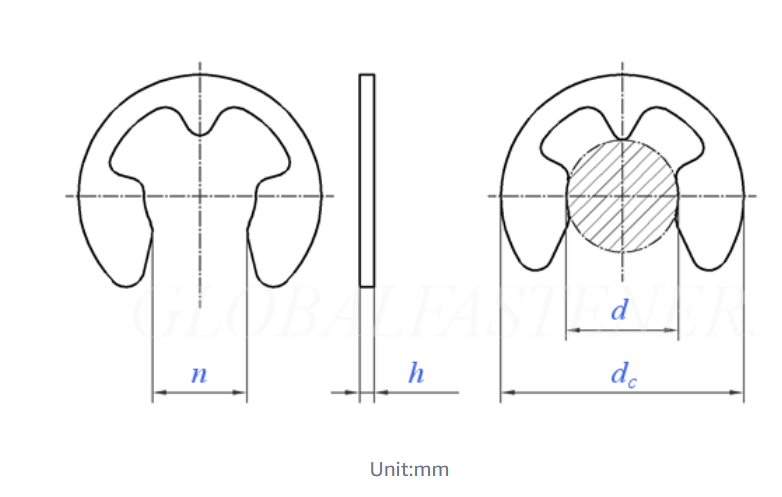

DIN6799 E-type Retaining Rings

DIN 6799 E-type retaining rings are widely used shaft retaining rings, characterized by their “E” shape. They are radially installed into a groove on a shaft to prevent axial movement of components. These rings are easy to install and remove, making them ideal for applications in machinery, automotive, and electrical equipment.

Size Range: M0.8-M30(standard range)
Standards: DIN 137 B

Available Materials: Carbon steel (65Mn), Stainless steel (SS304/SS316)

Options: Black oxide, Dacromet, Zinc plating (blue/white, yellow), Nickelplating, etc.

How to Use & Applications

How to Use:
Radially snap the retaining ring into the shaft groove
Prevents axial displacement or loosening of components
Can be installed or removed with circlip pliers

Applications:
Automotive components (bearings, gears, clutches)
Industrial machinery
Household appliances
Electrical and electronic devices
