YJT 3034 Clip Nuts

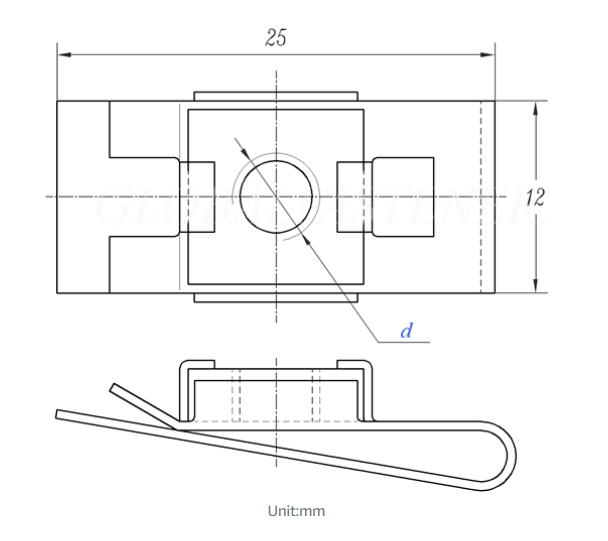

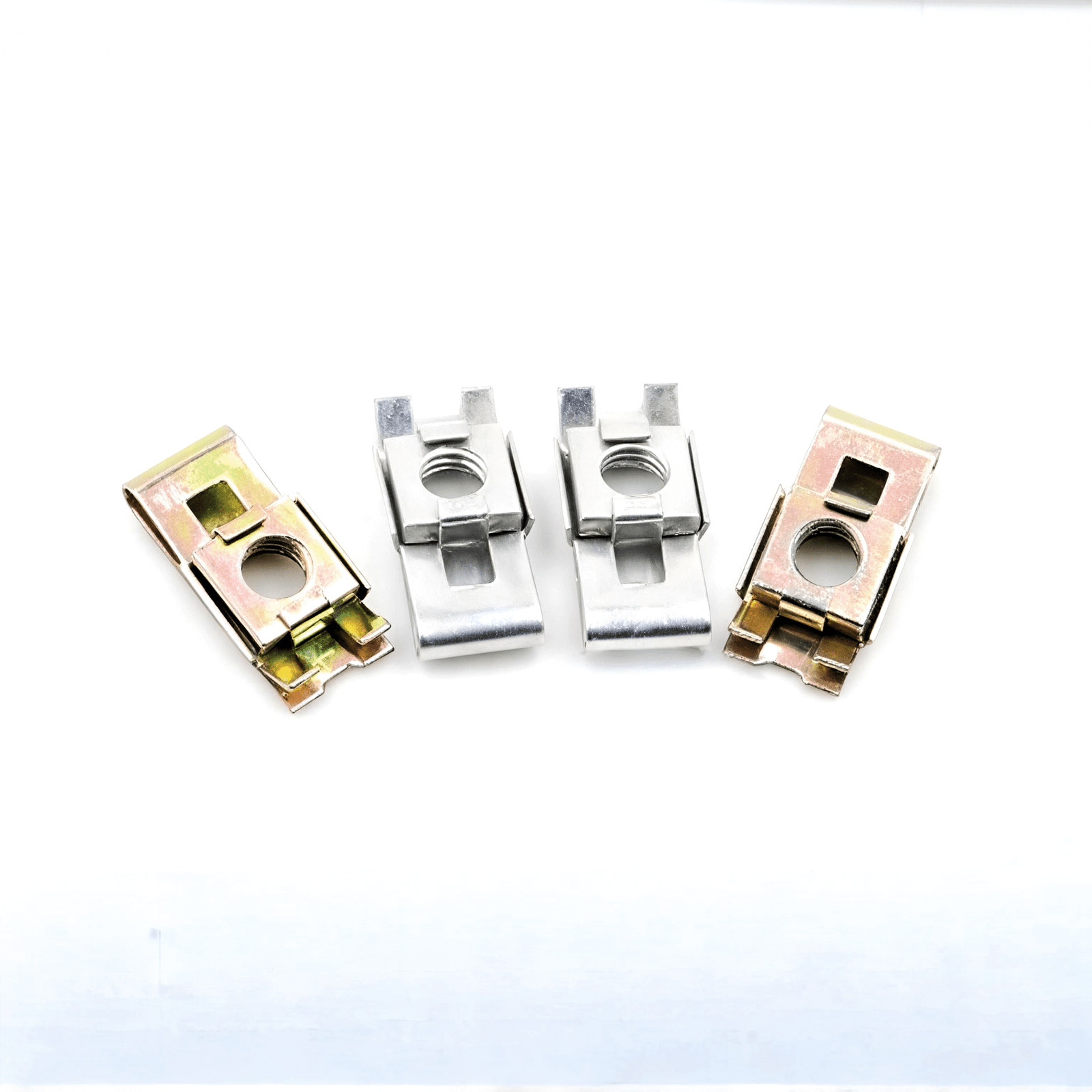

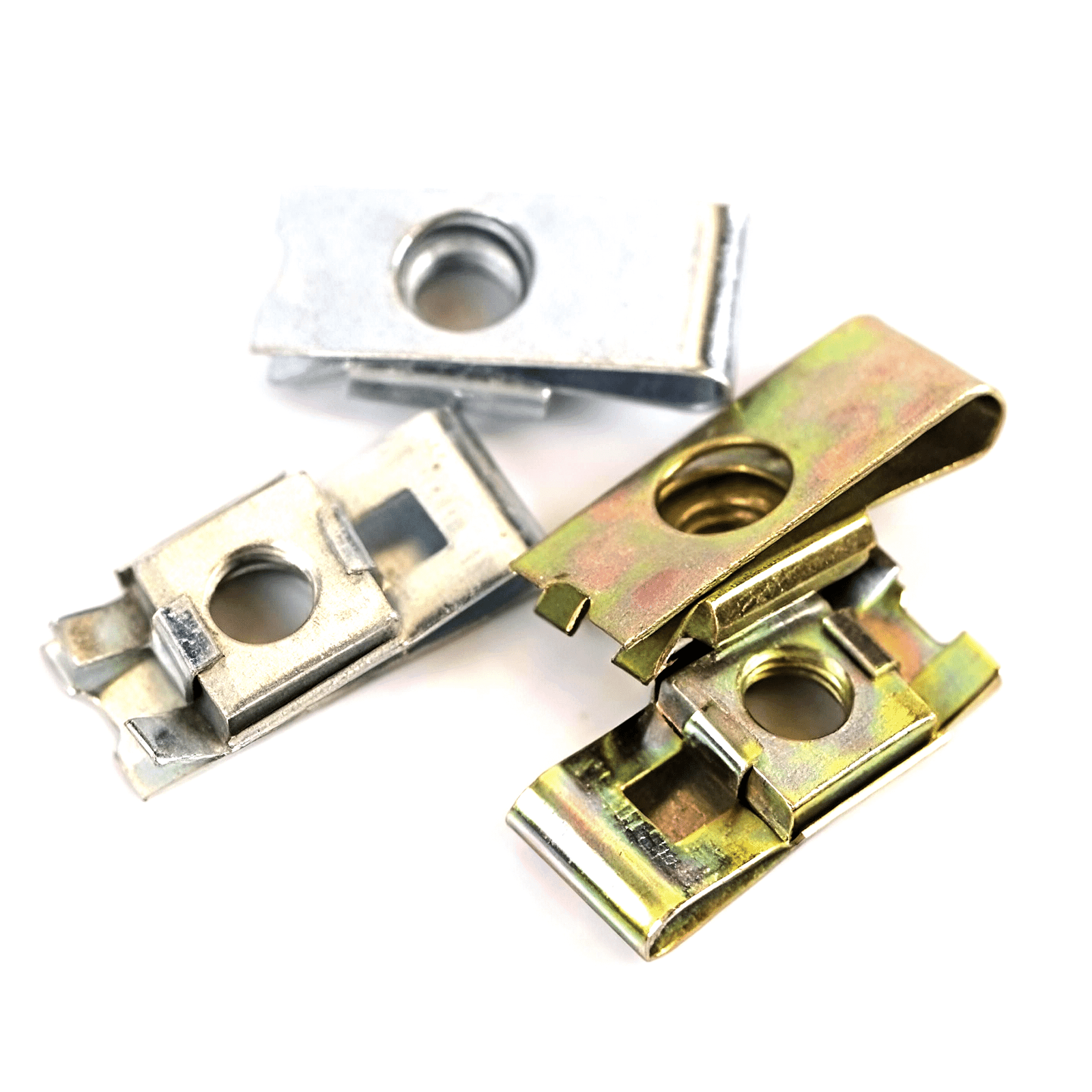

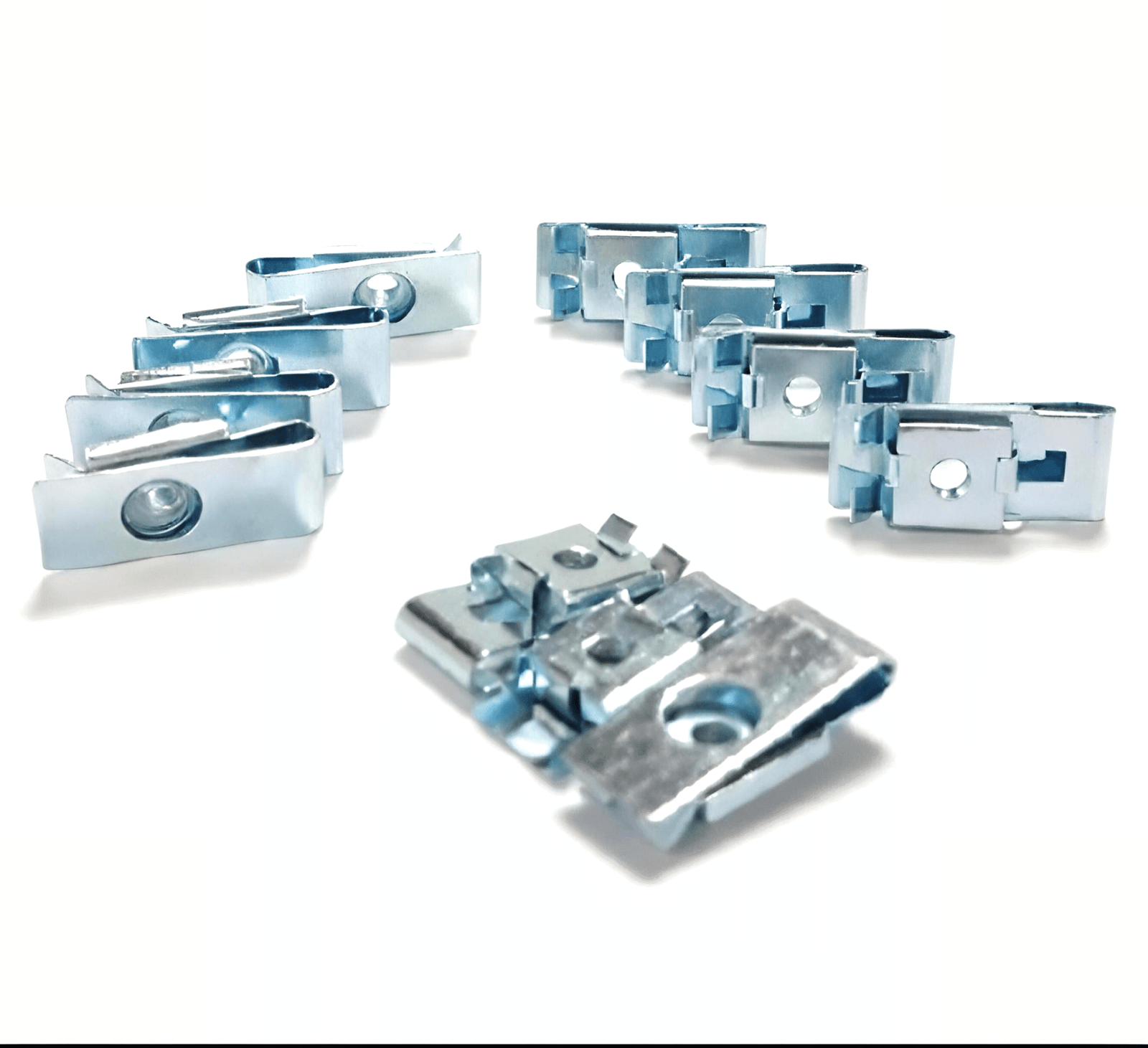

YJT 3034 clip nuts are sheet metal fasteners consisting of a threaded metal clip that can be easily snapped onto the edge of panels or profiles. They allow screws to be fastened securely without the need for pre-tapped holes. Clip nuts feature quick installation, precise positioning, and vibration resistance, making them ideal for mass production and quick assembly.

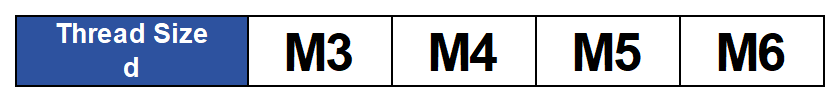

Size Range:M3 -M6(standard range)
Standards: YJT 3034

Available Materials: Carbon steel (65Mn), Stainless steel (SS304/SS316)

Options: Black oxide, Dacromet, Zinc plating (blue/white, yellow), Nickelplating, etc.

How to Use & Applications

How to Use:
Clip the nut onto the edge of the sheet metal or into a hole
Insert and tighten the screw into the nut to secure the connection
Suitable for blind installation and confined spaces, no extra tooling required

Applications:
Automotive industry (body, interior, seating)
Electrical equipment and enclosures
Sheet metal and cabinets
Household appliances and electronics
Building facades and steel structures
